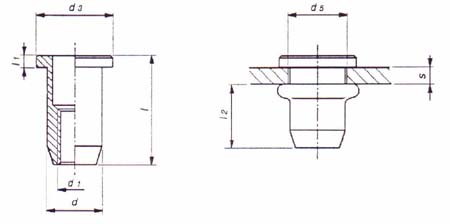

| Art no | S (mm) | l (mm) | d 1 6H | d2 (mm) | d 3 (mm) | l 1 (mm) | d 5 +0,15(mm) 0(mm) |
| 129A/M3/x | 0,5-2,0 | 9,5 | M3 | 5 | 8 | 0,8 | 5 |
| 129B/M3/x | 1,5-3,5 | 11,0 | |||||
| 129A/M4/x | 0,5-2,0 | 10,5 | M4 | 6 | 9 | 0,8 | 6 |
| 129B/M4/x | 1,5-4,0 | 12,5 | |||||
| 129A/M5/x | 0,5-3,0 | 12,5 | M5 | 7 | 10 | 1 | 7 |
| 129B/M5/x | 2,0-4,5 | 14,5 | |||||
| 129A/M6/x | 0,5-3,0 | 16,0 | M6 | 9 | 12 | 1,2 | 9 |
| 129B/M6/x | 2,5-5,5 | 18,5 | |||||
| 129A/M8/x | 0,5-3,5 | 17,0 | M8 | 11 | 14 | 1,3 | 11 |
| 129B/M8/x | 3,0-6,0 | 19,5 | |||||
| 129A/M10/x | 0,5-3,5 | 21,0 | M10 | 13 | 16 | 1,5 | 13 |
| 129B/M10/x | 3,0-6,0 | 23,5 | |||||
| 129A/M12/x | 0,5-3,5 | 25,0 | M12 | 15 | 18 | 2 | 15 |
| 129B/M12/x | 3,0-6,5 | 28,0 |
Andra dimensioner kan göras på förfrågan.
| Material |
| Mässing |
| Aluminium |
| Stål |
| Rostfritt |
